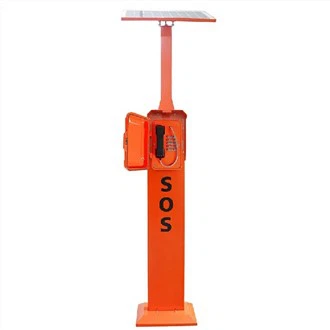

Model Number: JR-TP-04
This Solar Powered Roadside Emergency Telephone Tower is an ideal security solution for remote and high-risk areas. Painted for outdoor use, this vandal-resistant emergency telephone tower serves as a great deterrent to crime.
To use this emergency telephone, simply press the button and the safety&security will be dialed automatically. With solar powered, it is very cost-effective. And the emergency phone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
APPLICATIONS of Roadside Emergency Telephone
They are often used at university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.
MAIN FEATURES of Roadside Emergency Telephone
– There are 3 options for the connecting (analogue, VoIP, GSM/3G)
– Programmable for speed-dialing (PPT)
– Weather protection IP65-IP67
– Can be programmed remotely
– Telephone line powered for analogue phone
– Additional power supply required for VoIP or GSM type
– The material of the tower is cold rolled steel with powder coated body.
– Solar panels and batteries are sized according to the installation location. A charger, batteries and other equipment mount inside the tower.
– Vandal-resistant structure and coating designed to resist extreme weather conditions
– A variety of signage, graphics and colors choices are available
– CE, FCC, RoHS, ISO9001 Compliant
| Mechanical Characteristics | Sleek and harmomious design free of sharp edges
Prepared for the containment of auxiliary circuits |
| Solar Panel | With Solar panel mounting bracket which is adjustable on multiple directions |
| Material | Galvanized steel, it can be manufactured in stainless steel
AIS304/AIS316L on demand |
| Colour | Orange (other colours on demand) |
| Weight | 45 KG |
| Dimension | 2400* 436* 306 (mm) |
| Dimension | On floor |
TECHNICAL SPECIFICATIONS of Roadside Emergency Telephone
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | – 90~95dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker) |
| 3G Version | ||
| Power Supply | 12V DC | |
| Power Consumption | -Idle:0.3W -Active: 1.5W |
|
| Communication Type | Full duplex | |
| Ringer volume | 90~95dB(A) at a distance of 1 m | |
| Program Method | Remote programming by SMS | |
| Frequency | A version：
– Dual-Band WCDMA/HSDPA 850/1900MHz E version： – Dual-Band UMTS/HSDPA 900/2100MHz J version： – Dual-Band UMTS/HSDPA 850(800)/2100MHz |
|
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | –40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE & DIMENSIONS of Roadside Emergency Telephone
Unit size: 2400 *436 *306 (mm)
Packaging materials: pearl cotton, wooden box
Net weight: 40 KG
Gross weight: 50 KG
